Pneumatic valve test stand
Generate excitement

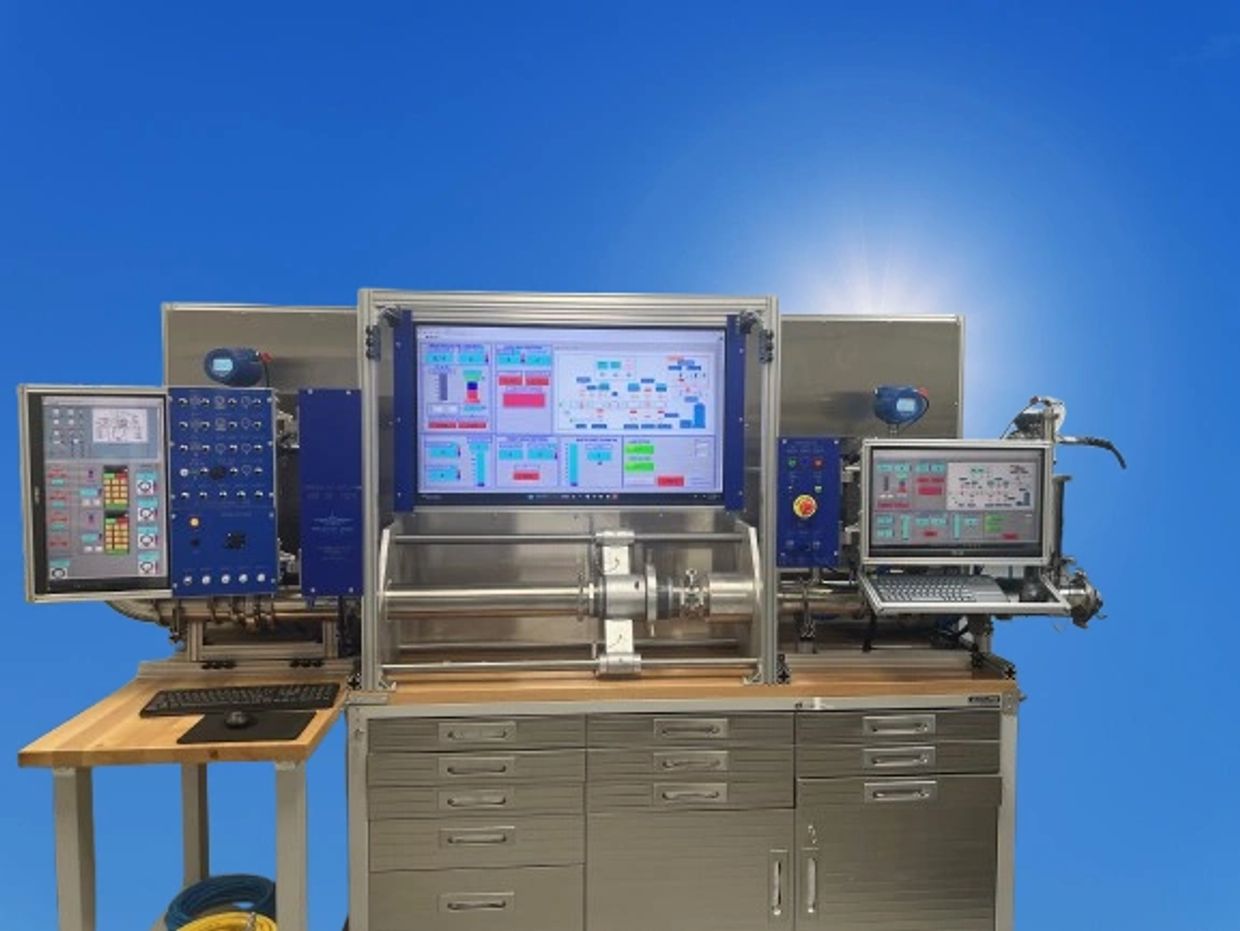

- The Universal Test Stand UVT-RF2025 is expertly engineered to test various valves under working pressures ranging from 0 to 127 PSI. This versatile tester ensures optimal flow when performing both port leak and case leak tests. You can effortlessly switch to a high-flow regulator and then control your external air source directly from the console or use the low-flow comes included with the stand when you are performing port and case leaks. A regulator comes included with the stand.
- This advanced test stand offers essential outputs for connecting to your regulator and additional outputs necessary for controlling external devices. Although designed for high flow, it maintains efficiency within a 150 PSI line.
- The valve holding fixture boasts an impressive capacity of 36 inches (excluding mounting plates), making it adaptable to a broad range of valves. Its innovative design allows for the easy use of mounting plates or a press system, and if you're seeking additional space, the output pipe can be modified to create even more room. With the UVT-RF2025, you have a reliable and flexible solution for all your valve testing needs.
Expert Aircraft Maintenance Services
PNEUMATIC BREAK-OUT BOX
PNEUMATIC BREAK-OUT BOX
PNEUMATIC BREAK-OUT BOX
Left side of the tester you have additional resources for testing as 2 Air Pressure regulators, 3 0-150 Gauges, 1 INH2O Gauge and one Vacuum Gauge also 3 OPEN/CLOSE VALVES, Restrictor Output and Needle Valve, you can use each resource independently or make a Set-up using the quick connections between each one, monitor is touch screen so tech can have hand free from key board or mouse.
MAIN CONSOLE CONTROL
PNEUMATIC BREAK-OUT BOX
PNEUMATIC BREAK-OUT BOX
From this console you will be able to control all the devises of the tester, Regulators, Valves and read all pressures and flow .
MAIN CONSOLE FUTURES
PNEUMATIC BREAK-OUT BOX
PNEUMATIC BREAK-OUT BOX
Main console can be position in different angles.
PNEUMATIC BREAK-OUT BOX
PNEUMATIC BREAK-OUT BOX
PNEUMATIC BREAK-OUT BOX
Main console can be position in different angles.
PNEUMATIC BREAK-OUT BOX
PNEUMATIC BREAK-OUT BOX
PNEUMATIC BREAK-OUT BOX
The Panel easily can be move from the tester to the bench just need input of Air supply and power, you may mounted on a cart and take it to another testing areas or the technician bench.
MAIN CONSOLE DETAILS
PNEUMATIC BREAK-OUT BOX
PNEUMATIC BREAK-OUT BOX
configurations
BASIC
This the basic configuration on Class 150 (4 Inch) stairless Pipe, contains all the necessary connections for testing the majority of the valves, the Red Section is not include on the setup however is pre-wire for the external devises.
Class 150 Basic +
This Configuration adds to the basic the Pressure regulator and flow meter.
Class 300 Basic +
This the basic configuration on Class 300 (6 Inch) contains all the necessary connections for testing the majority of the valves up to 6 Inch and 500 PSI.
